GRIPPER WITH INTERNAL GRIPPING WITH GRIP FOR SCREW THREAD

Type: NRUZ Q/d

Gripper with internal gripping with grib for screw thread NRUZ Q/d - serve for hanging manipulation with objects like some building elements, with average for gripping screw thread hole of d mm and maximal load capacity of Q kg. During manipulation is axis of coil in verticall position. This grippers are always made only for one average of screw thread hole with divergence max. +/- 0,25 mm.

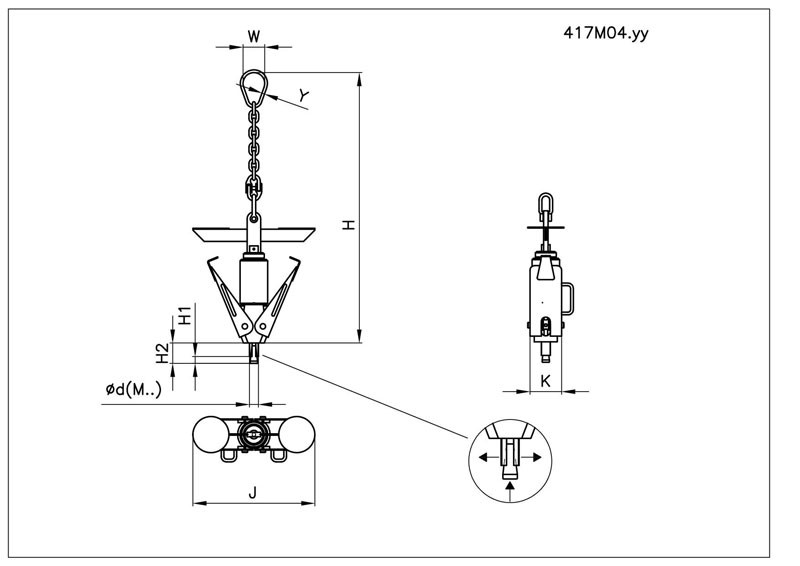

Code	Q [kg]	d [mm]	W [mm]	Y [mm]	H1 [mm]	H2 [mm]	K [mm]	J [mm]	H [mm]	G [kg]	Type [NRUZ]
417M04.01	500	M20	60	13	15	45	580	15	580	4	500/20
